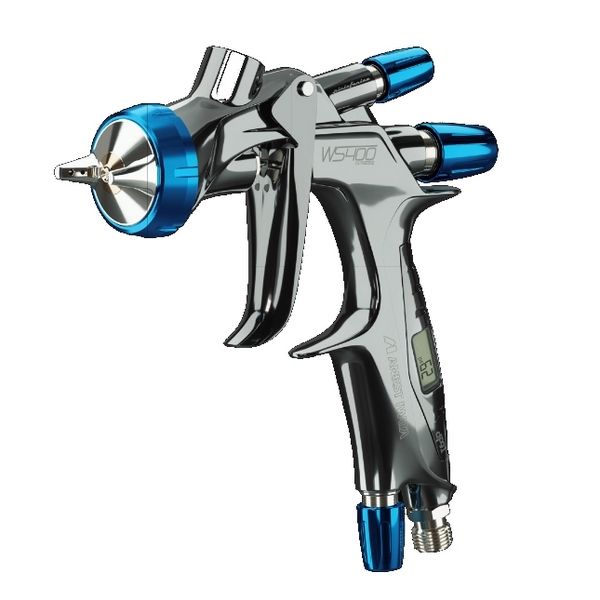

ANEST IWATA WS-400 Series 2 Base – Digital (SR2 1.3 OBS Setup)
The WS-400 Series 2 Base – Digital is built around Split Nozzle™ 2.0 pre-atomisation technology and a fully integrated DPG-1 digital manometer system designed to maintain the balance and ergonomics of the WS/LS platform. The body features a PVD surface treatment for added durability and an upgraded finish.
Key Highlights
- Split Nozzle™ 2.0 technology (Series 2 exclusive).
- DPG-1 Digital Manometer System integrated into the spray gun.
- PVD surface treatment to strengthen the body and improve appearance.
- Designed by Pininfarina.
- Lower noise level + optimized setting (Series 2 highlights).
- Compliant spray gun platform for refinish basecoat workflows.
Recommended Applications
- Wet-on-wet basecoat applications (Type A for OBS setups).
- Optimized setups available to match paint systems and climate conditions.
How to Use
- Set inlet pressure to the published spec for the selected setup (see table below).
- Test spray and fine-tune pattern/fluid controls to match your paint system and application method.
- For cleaning and maintenance, the integrated digital system can be detached using the Click-Mag locking concept (per Series 2 Digital design notes).
Technical Specifications (SR2 1.3 OBS – Standard Climate Setup)
| Setup / Climate | 1.3 OBS (Standard climate) |
| Application Type | OBS: Type A wet-on-wet application |
| Inlet Pressure | 2.0 bar / 29 psi |
| Fluid Output | 215 mℓ/min |
| Air Consumption | 13.1 CFM |
| Pattern Width | 255 mm / 10.0 in |
| Air Cap | WS-400-02-OBS |
| Standard Climate Range | 59–86°F (15–30°C) @ 30%–75% RH |
| Air Nipple | G1/4" |
| Fluid Nipple | G1/4" |
Ordering Reference (SR2 1.3 OBS)
| Non-Digital Gravity Spray Gun | Part # 2917 |
| Digital Gravity Spray Gun | Part # 2917D |
| Nozzle + Needle Set (OBS) | 93008340 |
| Air Cap Set (02-OBS) | 93008310 |
| DPG-1 (PSI) | 930114A0 |
Related Climate Setups (WS-400 Series 2 Base SR2)
| Setup | Climate | Fluid Output (mℓ/min) | Pattern (mm/in) |
|---|---|---|---|
| 1.3 OBS-0 | Humid | 210 | 255 / 10.0 |
| 1.3 OBS | Standard | 215 | 255 / 10.0 |
| 1.3 OBS+1 | Dry | 235 | 260 / 10.2 |
| BF-S | Standard | 245 | 250 / 9.8 |
| BF-40 | Hot & Dry / Extreme | 255 | 260 / 10.2 |
