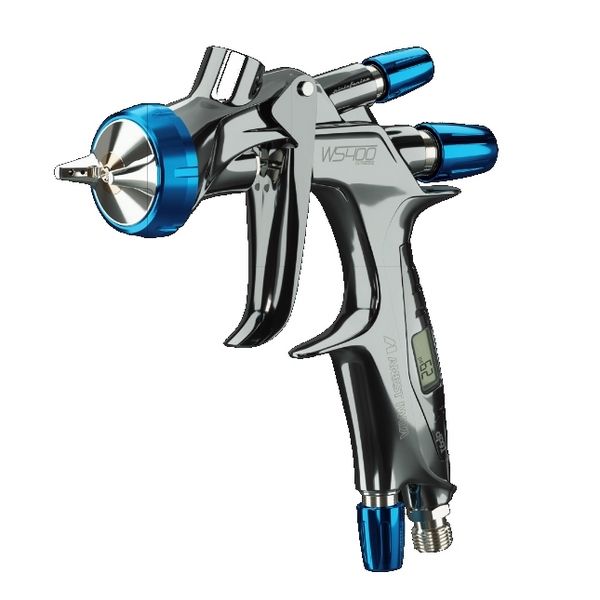

ANEST IWATA WS-400 Series 2 Base – Digital (WS-400-SR2D-13OBS)
The WS-400 Series 2 Base – Digital is a compliant gravity spray gun engineered for wet-on-wet basecoat workflows. It features the exclusive Split Nozzle™ 2.0 pre-atomisation technology, a fully integrated DPG-1 digital manometer system, and a premium PVD surface treatment designed to strengthen the body and improve durability and appearance.
Key Benefits
- Split Nozzle™ 2.0 technology developed for Series 2 performance across modern refinish paint types.
- DPG-1 digital manometer integrated into the gun and designed to keep the WS/LS balance and feel.
- Click-Mag locking system allows the digital module to be detached for cleaning/maintenance.
- PVD surface treatment for increased body durability and improved finish.
- Compliant spray gun platform for professional refinish environments.
Recommended Applications
- Basecoat – Type A wet-on-wet application.
- 1.3 OBS configuration: optimized settings designed around climate/application needs (see specs below).
How to Use
- Confirm setup: verify you are using the 1.3 OBS configuration for your climate.
- Set inlet pressure: set to the published spec for this setup (see table).
- Test spray: adjust pattern/fluid controls and test on a spray-out card before applying to the panel.
- Maintain: detach the digital module (Click-Mag) as needed for cleaning and routine maintenance.
Technical Specifications (SR2D 1.3 OBS – Standard Climate Setup)
| Model / Configuration | WS-400-SR2D-13OBS (1.3 OBS – Standard climate) |
| Application Type | OBS: Type A wet-on-wet application |
| Inlet Pressure | 2.0 bar / 29 psi |
| Fluid Output | 215 mℓ/min |
| Air Consumption | 13.1 CFM |
| Pattern Width | 255 mm / 10.0 in |
| Air Cap | WS-400-02-OBS |
| Standard Climate Range | 59–86°F (15–30°C) @ 30%–75% RH |
| Air Nipple | G1/4" |
| Fluid Nipple | G1/4" |
| Compliance | Meets EPA NESHAP 40 CFR, Part 63 Subpart 6H (per catalog) |
Service / Replacement References (for this setup)
- Nozzle + Needle Set (OBS): 93008340
- Air Cap Set (02-OBS): 93008310
- DPG-1 (PSI): 930114A0
FAQ
What does “OBS” mean on WS-400 Series 2 Base?
OBS refers to an optimized basecoat setting for a Type A wet-on-wet application. The catalog lists OBS variants tailored by climate (humid / standard / dry).
How do I choose between OBS-0, OBS, and OBS+1?
- 1.3 OBS-0: Humid climate setup
- 1.3 OBS: Standard climate setup
- 1.3 OBS+1: Dry climate setup
Match your environment to the manufacturer’s climate guidance to keep atomization and pattern behavior consistent.
